Use this Quick Tach mount plate to easily move trailers or other tow-able implements that use the 2″ trailer hitch.
Features:
– Fits skid steers with the universal quick tach mounting system and tractors with the skid steer style quick tach
– 3,000 lbs capacity
– 4 Gussets for superior strength and integrity
– 2″ trailer receiver hitch
– Oblong holes for tow chains
– Grade 50 structural steel
– All price include shipping
Specifications:
– Outside width: 46″
– Inside width: 45″
– Height: 18.5″
– Top bar: 3/8″ thick
– Plate: 1/4″ thick
– Product size: 1232*245*480mm / 48*9.6*18.7in
– Product Weight: 39.42kg / 86.7lb

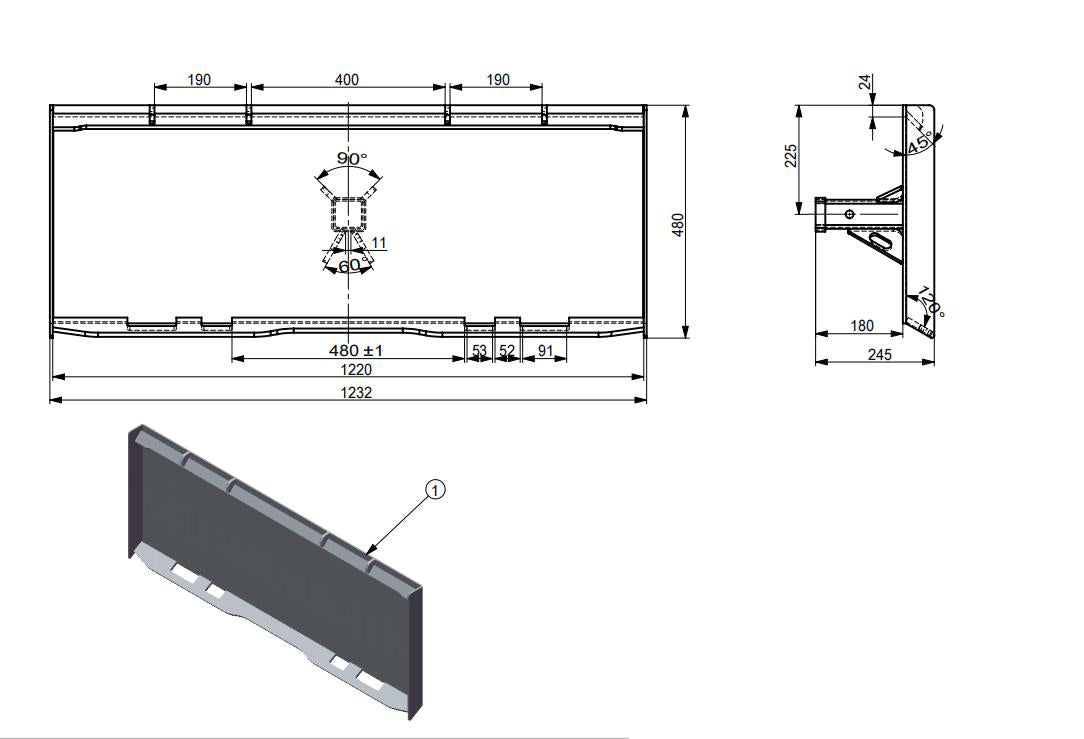

Technical Drawing:
