Mini Skid Steer Mount Log Grapple, Rotate by Hydralic, Fit Mini Quick Loader

$2,194.00

Add to Cart
Mini Skid Steer Mount Log Grapple, Rotate by Hydralic, Fit Mini Quick Loader
$2,194.00

Our Mini Skidsteer Log Grapple efficiently navigates tight spaces, featuring a spring-centered return for cornering, tight grapple closure, and universal compatibility with select models.

Download Manual

Product Features
  • –Grapple tines fold together as tight as 3 inches, ensuring easy handling of smaller – logs and branches
  • – The grapple twists when turning corners but stays straight when grabbing logs. – Includes lateral and in-line lock positions.
  • – Leverage and secure your load with the serrated cradle when lifting logs in-line.
Specifications
  • – Spring Return: 180 Deg Lockable
  • – Dimension: 47″x44″x40″
  • – Grapple Opening: 3″-38″
  • – Weight: 285 lbs
  • – Grapple Cylinder Clamp Force: 9400 lbs
  • – Recommended HP: 20-40 HP
  • – Boom Lift Capacity: 1000 lbs
  • – Rotator Rating: 6750 lbs
  • – Hydraulic Flow: 4-10 gpm
  • – Hydraulic Pressure: 3000 psi
Delivery & Returns

We offer FREE 3-10 days shipping (LTL Freight and Residential) for all orders over. Orders under that total will have shipping calculated at checkout. Products will ship out in 3-5 business days and tracking information will be provided.

30-DAY NO HASSLE REFUNDS AND RETURNS

If there’s an issue with your product, we make refunds and returns quick and easy. To contact us, email [email protected] More info on refunds and returns here

Will it fit my machine?

Yes! We confirm all machine-attachment compatibility before processing any orders, and will reach out to you directly to get any information we need in order to do so. If you would like to confirm compatibility before placing an order, reach out to our team here and we’ll be happy to confirm fitment.

– Mini Skidsteer Log Grapple squeezes into tight spaces and gets the job done efficiently with the ideal attachment for landscapers and tree service contractors who need hauling strength through narrow passages.
– The Lod Grapple features a spring-centered return that twists when turning corners but stays straight when grabbing logs, a tight grapple closure for small branches, and lateral or in-line grapple positioning for smooth log handling.
– This Log Grapple is designed to fit the universal attachment plate of the following make of Mini Skidsteers only: Toro, Vermeer, Ramrod, Boxer, Ditch Witch (Will not fit 1550 Ditch Witch)
– From Forest to Fireplace, it Provides Heavy Duty Equipment to Get the Job Done!

Features:

– Grapple tines fold together as tight as 3 inches, ensuring easy handling of smaller – logs and branches
– The grapple twists when turning corners but stays straight when grabbing logs. – Includes lateral and in-line lock positions.
– Leverage and secure your load with the serrated cradle when lifting logs in-line.

Specifications:

– Spring Return: 180 Deg Lockable
– Dimension: 47″x44″x40″
– Grapple Opening: 3″-38″
– Weight: 285 lbs
– Grapple Cylinder Clamp Force: 9400 lbs
– Recommended HP: 20-40 HP
– Boom Lift Capacity: 1000 lbs
– Rotator Rating: 6750 lbs
– Hydraulic Flow: 4-10 gpm
– Hydraulic Pressure: 3000 psi

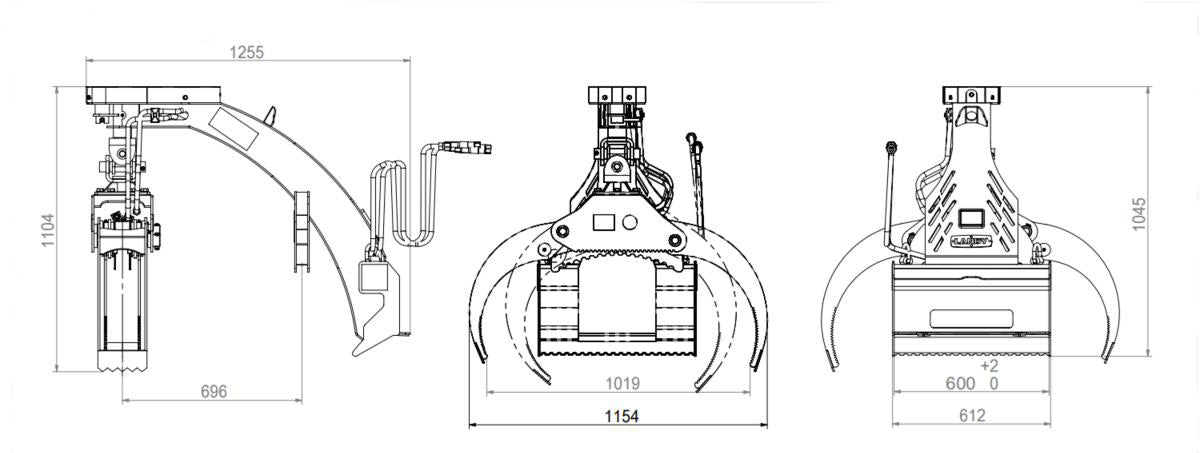

Technical Drawing:

S-LG450(80-1020)-MP600:

Inner Width 23.6″ Universal Skid Steer Quick Attach:

ATTENTION: Please check the Mount Plate can fit your loader before purchase!

Due to the buyer’s failure to verify the size of the mount plate before purchasing, the product cannot match the loader and needs to be replaced. Our company does not accept returns unless the buyer compensates the seller for the round-trip shipping cost. For refunds, we will not refund product fees unless we receive the product in our warehouse and confirm that it can be resold.
