This 9900lb long jib is a general purpose jib which is great for reaching across pits and areas where the forklift cant drive up to as it has a 137.8” reach when fully extended.Overall length when closed is 78”.
Features:
– Double fork design
– Painting plated finish
– 9900 lbs at first position to 440 lbs fully extended
– Fits most pallet forks
– All price include shipping
Specifications:
– Safe Working Load: 9900lb
– Weight: 320lb
– Load Centre: 34.2in
– Fork Slots: 7.2×2.5in
– Pocket Centres: 11.4in
– Horizontal Centre of Gravity: 50in
– Vertical Centre of Gravity: 5in
– Package Size (LxWxH): 81 x 22.8 x 15in
– Package Weight: 366lb

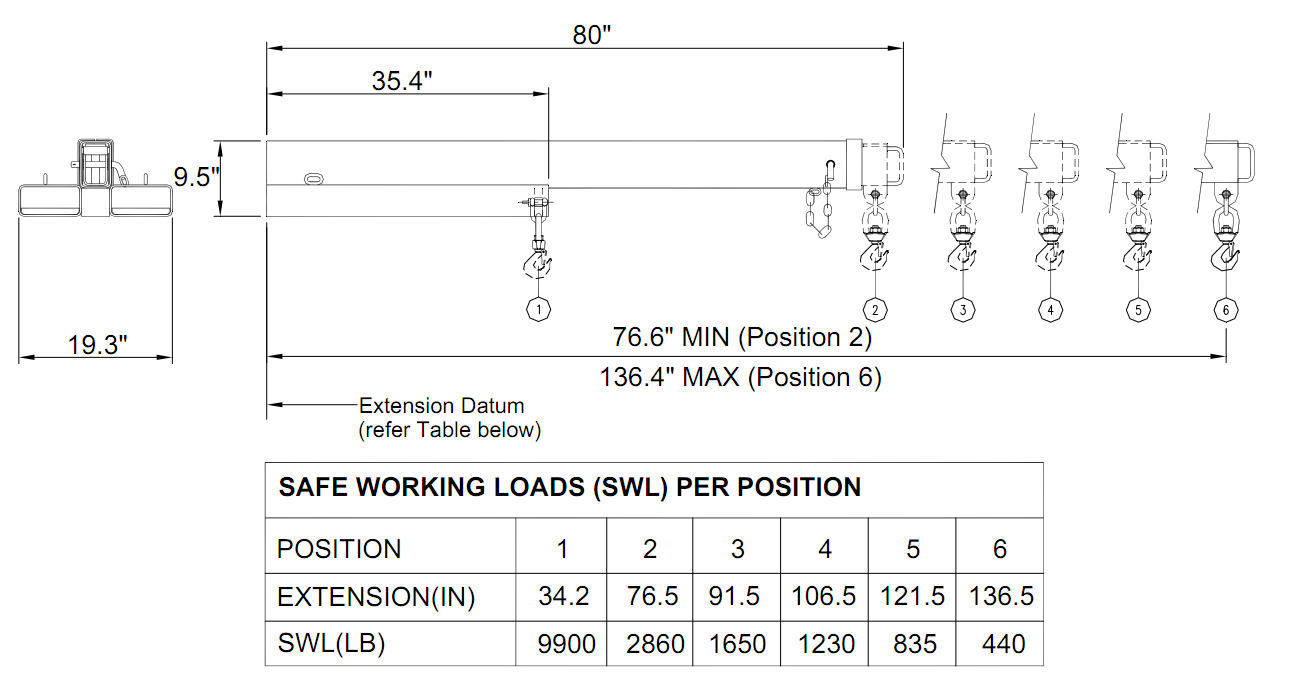

Technical Drawing:
