The type FJL2.5 fixed long jib has a 138.5” extension which allows for long reach lifts. The overall jib length when retracted is 82”. This slip-on jib is held to the forklift by a safety chain.
Features:
– Double fork design
– Painting plated finish
– 5500 lbs at first position to 530 lbs fully extended
– Fits most pallet forks
– All price include shipping
Specifications:
– Safe Working Load: 5500lb
– Weight: 302lb
– Load Centre: 37in
– Fork Slots: 7.2×2.5in
– Pocket Centres: 10.8in
– Horizontal Centre of Gravity: 45.6in
– Vertical Centre of Gravity: 7.2in
– Package Size (LxWxH): 83.1 x 22.8 x 24.1in
– Package Weight: 353lb

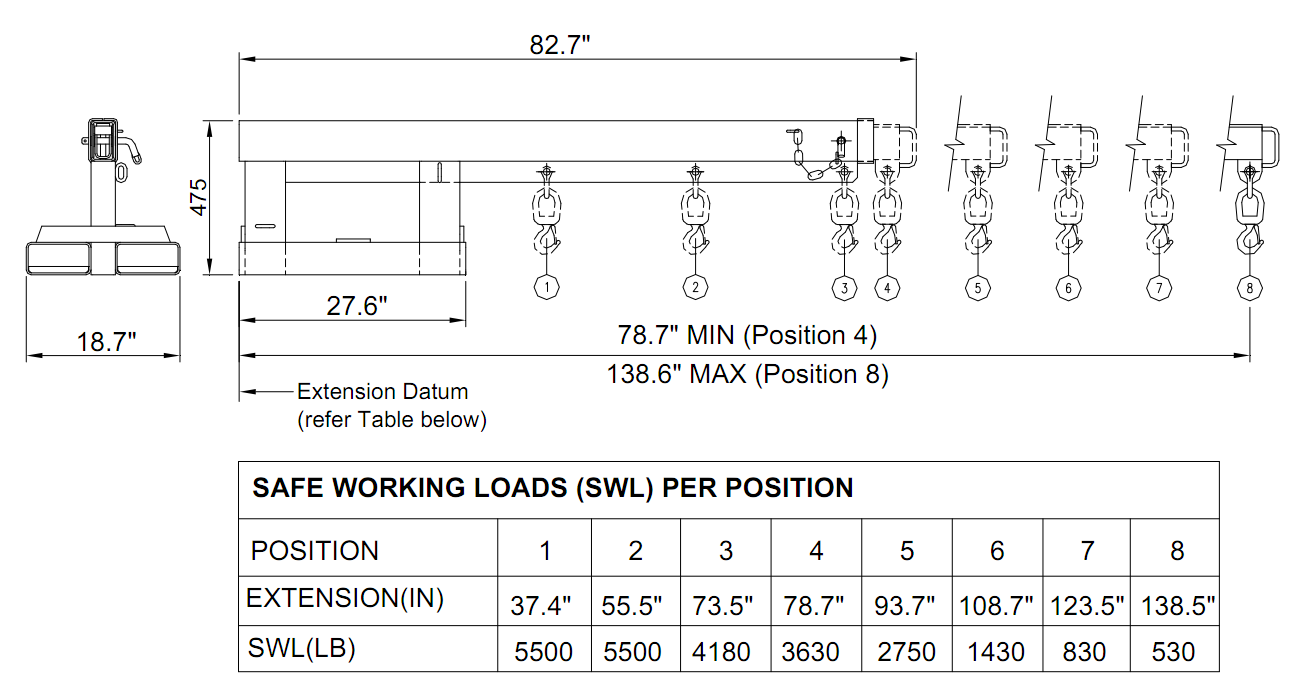

Technical Drawing:
